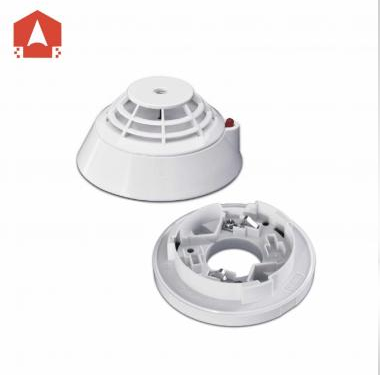

ATL-920 Intelligent fixed temperature heat detector

ATL-920 Intelligent fixed temperature heat detector

DC 24V; standby current≤300μA alarm current consumption≤1.5mA; External dimension: Φ100x47mm;
Description

Product features
1    It can realize electronic coding and rewrite the address via coder in situ.
2    Within a single-chip microcomputer, it can realize real-time data acquisition and processing, realize a curve tracing for the field situation.
3    It has a temperature compensation function and a sensor fault detection function (fault reporting  to fire alarm control panel).
4    Non-polarity, two-bus connection that ensures convenient installation and maintenance.
5    Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.

Technical parameters
1.    Executive standard: GB4716-2005
2.    Operating voltage: 24V (pulse modulation)
3.    Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4.    Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status.
5.    Weight: about 47g
6.    Product class: A2
7.    External dimensions: diameter: 100mm, height: 56mm (with the base)
8.    Wiring method: non-polarity two-bus system (L1, L2)
9.    Operating environment: Indoor, temperature: -10℃~+50℃; relative humidity: ≤95% (40℃±2℃, without condensation)
10.    Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.
11.    Installation height: ≤8m
12.    Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System.
13.     Matched host machine: fire alarm control panel (such as ATL-MN300)

Appearance and dimensions (see Fig.1)
