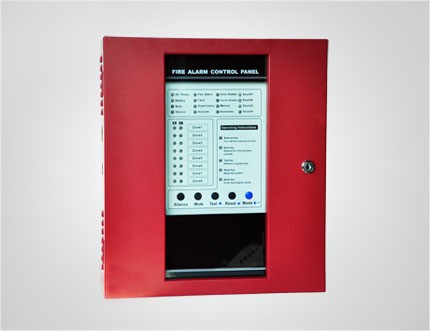

CK1016 16 zones Conventional Fire Alarm Control Panel

CK1016 16 zones Conventional Fire Alarm Control Panel

The CK1000 Series Conventional Fire Alarm Control Panel is a 24 volt, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective CK1000 Series can be used in a variety of low- to mid-sized applications.
Description
General Description
The CK1000 Series Conventional Fire Alarm Control Panel is a 24 volt, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective CK1000 Series can be used in a variety of low- to mid-sized applications.

Features
1. Four, Eight, Sixteen Zone Style B (Class B)Initiating Device Circuits (IDCs), All zones accept two-wire smoke detectors and any normally-open contact devices.
2. Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
3. Three General Alarm, Trouble and Supervisory,Form A Relay Output.
4. One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs), NACs may be programmed: Silenceable or Non-Silenceable.
5. 3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
6. Zone Input Short Circuit can be set to “Alarm”or “ Fault” mode.
7. RS485 Communication Port (optional).
8. Automatic/Manual mode can be programmed.
9. Disable/Enable control per Zone (IDC) can be programmed.
10. Disable/Enable Sound Output(NACs) can be programmed.

Technical Specifications
1. AC POWER: 220VAC, 50 Hz.
2. BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge. Maximum battery charger capacity: 18AH battery.
3. NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate battery box.
4. Total DC24V system power: 3.0 amps.
5. Maximum current per NAC: 1.25 amps.
6. Maximum battery charging capability: 18 AH.
7. Resettable four-wire smoke detector power output.
8. Non-resettable power output.
9. Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @30 VDC (resistive), 2.0 amps @ 30 VAC (resistive).

Appearance and dimensions
