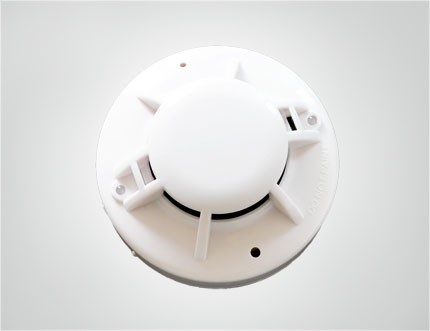

YT102 2-wire Smoke Detector

YT102 2-wire Smoke Detector

The device is photoelectronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
Description
Product overview
The device is photoelectronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel. Two LEDs on each detector provide local 360°visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The detector can be reset only by a momentary power interruption.

Features
1. Compatible with all the conventional fire alarm control panel
2. Unpolarized wire input
3. Wide range of operating voltages
4. Unique optical sensing chamber
5. Built in microprocessor intelligent software
6. Two LEDs blink standby , provide 360° visibility
7. Insect-resistant  s creening
8. Twist-on mounting base with tamper lock
9. Drift compensation and smoothing algorithms
10.Remote Indicator LED can be connected.

Technical Specifications
1. Weight: 155g
2. Diameter: 103mm
3. Height (including mounting base): 55 mm
4. Weight: 155 g
5. Operating Temperature Range: -10°C to 50°C
6. Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
7. Latching Alarm: Reset by momentary power interruption

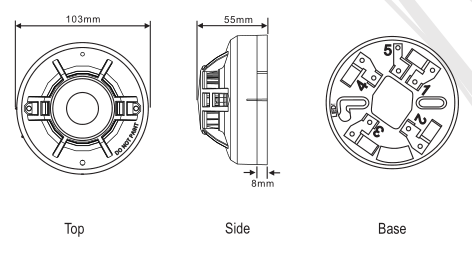

8. Top Side Base
9. Figure 1.  of detector: Dimension
10.Electrical Ratings
11.System Voltage (nominal): 24 VDC (9V~ 28VDC)
12.Standby Current: 60 μA @ 24VDC
13.Alarm Current: 30 mA @ 24VDC

Dimensions

Odering Information
