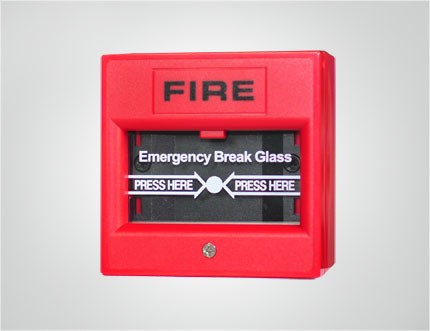

SB106 Conventional Manual Call Point

SB106 Conventional Manual Call Point

The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by pressing its breakable glass. The manual call point can be test by a test key without breaking the glass.
Description
Product Overview
The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by pressing its breakable glass. The manual call point can be test by a test key without breaking the glass.

Features
1. Compatible with all the conventional fire alarm control panel
2. Can be reset by key
3. 470 Ohm resistance
4. Easy surface mounting Base included

Technical Specifications
1. Di mension : 88mmX88mm
2. Height (including mounting base): 52 mm
3. Weight: 172 g
4. Operating Temperature Range: -10°C to 50°C
5. Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
6. Latching Alarm: Reset by momentary power interruption

Electrical Ratings
1. System Voltage (nominal): 24 VDC (9V~ 28VDC)
2. Standby Current: 60 μA @ 24VDC
3. Alarm Current: 10~30 mA @ 24VDC

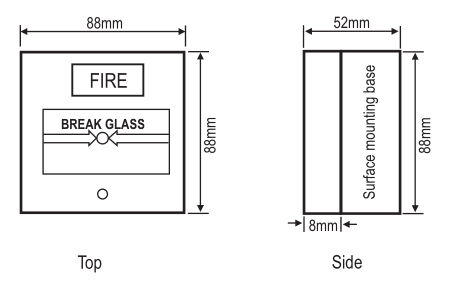

Dimensions

Ordering Information
