JL188-6 6

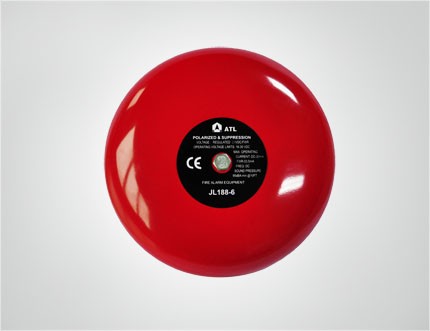

JL188-6 6" Alarm Bell

The JL188 Electric bell of notification appliances offers a wide range of Sound, for wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems.
Description
Product Overivew
The JL188 Electric bell of notification appliances offers a wide range of Sound, for wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems.

Features
1. Compatible with all the conventional fire alarm control panel
2. High sound level up to 95dB
3. Easy installation baracket included
4. Steel material

Technical Specifications
1. Dimensions: Diameter150mm, Height 45mm(JL188-6)
2. Weight: Net Weight 580g, Gross Weight 650g
3. Operating Temperature Range: -10°C to 50°C
4. Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

Electrical Ratings
1. System Voltage (nominal): 24 VDC (16V~ 30VDC)
2. Alarm Current: 70 mA @ 24 VDC
3. Alarm Sound Intensity: Minimum 95dB

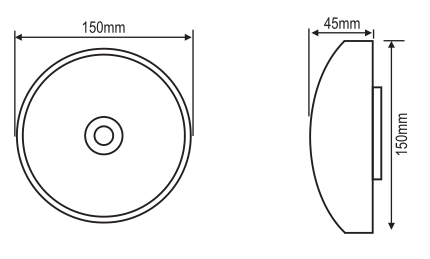

Dimensions

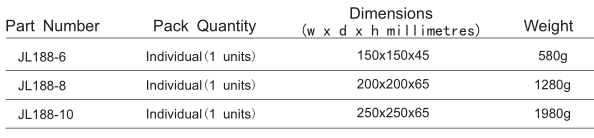

Ordering Information
