The device is intelligent sensors that utilize a state-of-the-art thermistor sensing circuit for fast response. These sensors are designed to provide open area protection with 50 foot spacing capability. The device is a rate-of-rise temperature sensor with 135°F fixed temperature alarm.The device is a rate-of-rise with fixed temperature alarm thermal detector utilizing a state-of-the-art dual thermistor sensing circuit. These detectors are esigned to provide open area protection with 50-foot spacing capability, and are to be used with compatible control panels only. Two LEDs on each detector light to provide 360°visibility of the detector indication.
Product Overview The device is intelligent sensors that utilize a state-of-the-art thermistor sensing circuit for fast response. These sensors are designed to provide open area protection with 50 foot spacing capability. The device is a rate-of-rise temperature sensor with 135°F fixed temperature alarm.The device is a rate-of-rise with fixed temperature alarm thermal detector utilizing a state-of-the-art dual thermistor sensing circuit. These detectors are esigned to provide open area protection with 50-foot spacing capability, and are to be used with compatible control panels only. Two LEDs on each detector light to provide 360°visibility of the detector indication.

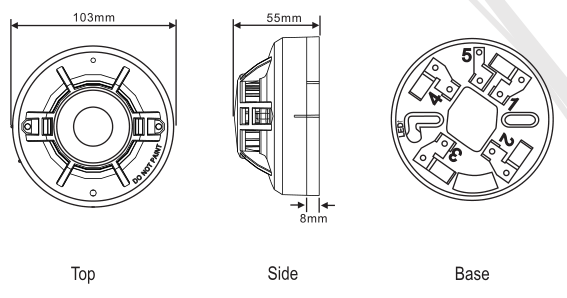

Features 1. Compatible with all the security alarm system 2. Alarm Relay Output(NO/NC can be adjustable) 3. Unpolarized wire input 4. Wide range of operating voltages(9V~28VDC) 5. High precision electronic thermistor 6. Built in microprocessor intelligent software 7. Two LEDs blink standby , provide 360° visibility 8. Insect-resistant s creening 9. Twist-on mounting base with tamper lock Technical Specifications 1. Diameter: 103mm 2. Height (including mounting base): 55 mm 3. Weight: 155 g 4. Operating Temperature Range: -10°C to 50°C 5. Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing 6. Latching Alarm: Reset by momentary power interruption
