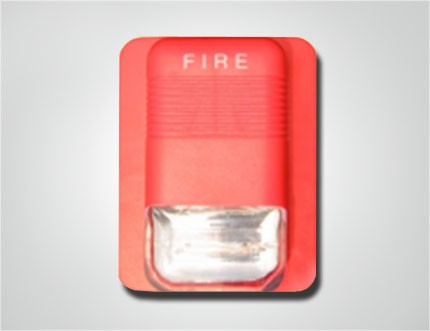

SG109 Conventional Sounder Strobe

SG109 Conventional Sounder Strobe

The SG109 Sound Strobe of notification appliances offers a wide range of Sound/strobes, for wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems
Description
Product Overview
The SG109 Sound Strobe of notification appliances offers a wide range of Sound/strobes, for wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems.

Features
1. Compatible with all the conventional fire alarm control panel
2. Long light life up to 40000 flahsed
3. High sound level up to 100dB

Technical Specifications

1. Dimensions: Length160mm, Width 117mm, Depth 46mm
2. Weight: Net Weight 236g, Gross Weight 285g
3. Operating Temperature Range: -10°C to 50°C
4. Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

Electrical Ratings
1. System Voltage (nominal): 24 VDC (16V~ 30VDC)
2. Standby Current: 60 μA @ 24VDC
3. Alarm Current: 100 to 150 mA @ 24 VDC
4. Strobe Flash Rate: 1 flash per second
5. Strobe Lifetime: Minimum 40000 times
6. Alarm Sound Intensity: Minimum 100dB
7. Alarm Sound Tune: Selectable: I-Ambulance, II-Police Car, III- Fire-engine

Dimensions

Ordering Information
