GA543-A AC Powered Plug-In Combustible Gas Detector

GA543-A AC Powered Plug-In Combustible Gas Detector

Detect all sorts of combustible gases, natural gas (methane), bottled gas (propane), LPG (Liquefied petroleum Gas), LNG (Liquefied natural gas), coal gas, including town gas.
Description
Product Overview

Detect all sorts of combustible gases, natural gas (methane), bottled gas (propane), LPG (Liquefied petroleum Gas), LNG (Liquefied natural gas), coal gas, including town gas.

Features

1. Wide Power Input Range - AC90-270VAC
2. Loud 85dB alarm and LED warning light.
3. High quality durable sensor.
4. Self diagnostic function by MCU intelligent software.
5. Excellent reliability & High stability.
6. Ideal for all kitchens.
7. Test/Reset Button - Tests the alarm electronics and resets the unit during alarm.
8. Power LED - Indicates alarm is receiving power and operating properly.
9. Alarm/Fault LED - Illuminates when in alarm/fault mode.
10.Alarm Signal Output - Relay contacts or voltage outputs when in alarm mode.

Technical Specifications

1. Power Source: AC90-270
2. Power Consumption: <1.5W(Standby), <5W(Alarm)
3. Sensitivity: LNG 7500ppm (15%LEL )
4. LPG 2000ppm (10%LEL)
5. Coal Gas 800ppm ( 2%LEL)
6. Audio Alarm: 85dB at 10ft ( 3meters )
7. LED: Green, Normal; Red, Alarm;
8. Relay Output: NO/NC(2A@24VDC)
9. Temperature Range: -10°C to 50°C
10.Humidity Range: 5%-95% relative humidity (RH)
11. Weight: 265g

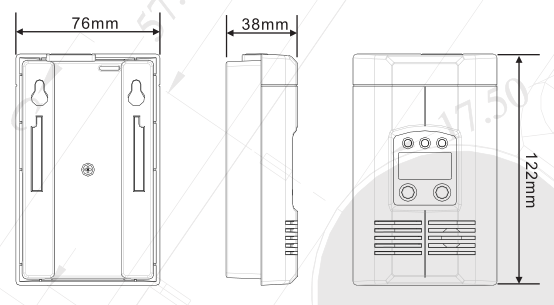

12. Size: 76mm Width x 122mm Height x 38mm Depth

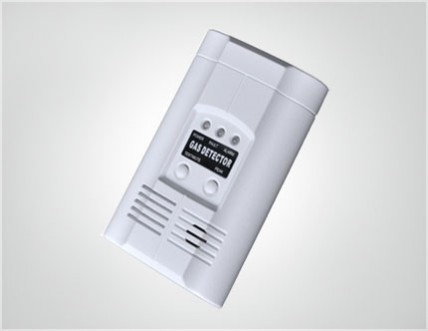

Appearance
