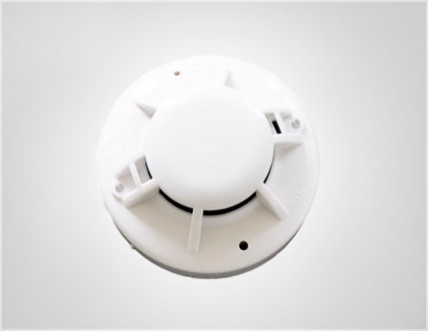

Product Overview The detector is a combined smoke and heat detector with photoelectronic sensor and heat thermistor together. This detector is designed to provide open area protection and to be used with most security alarm control panel. Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. The detector can be reset only by a momentary power interruption. The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.The detector combine a photo electronic sensing chamber and a temperature heat detector.
Features 1. Compatible with all the security alarm system 2. Alarm Relay Output(NO/NC can be adjustable) 3. Unpolarized wire input 4. Wide range of operating voltages(9V~28VDC) 5. Unique optical sensing chamber 6. Built in microprocessor intelligent software 7. Two LEDs blink standby , provide 360° visibility 8. Insect-resistant s creening 9. Twist-on mounting base with tamper lock 10. Drift compensation and smoothing algorithms

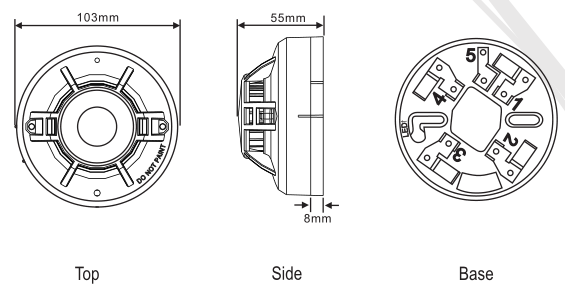

Technical Specifications 1. Diameter: 103mm 2. Height (including mounting base): 55 mm 3. Weight: 155 g 4. Operating Temperature Range: -10°C to 50°C 5. Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing 6. Latching Alarm: Reset by momentary power interruption
